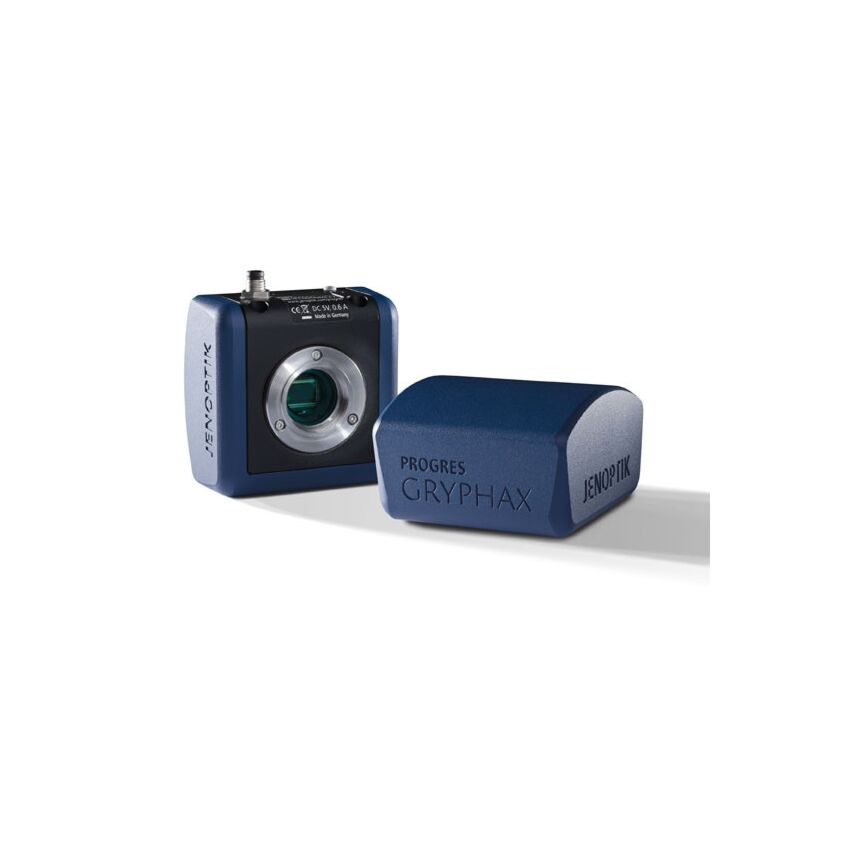

Gryphax NAOS 20.0MP CMOS Color Digital Microscope Camera
Call for Price: (877) 409-3556
- 20.0 MP color CMOS camera with 1.0" sensor
- Win, Mac & Linux compatible
- Near perfect color reproduction
- Fast (50 FPS) refresh rates, live imaging
- High speed USB 3.0 Output
- Standard C-Mount Interface
- Legendary German engineering
Summary
New from Jenoptik, the Gryphax series NAOS is a 20.0 megapixel CMOS microscope camera with USB 3.0 output for rapid, HD-quality video and image data transfer. Pixel size is 2.4µm x 2.4µm with maximum resolution of 5400 x 3600 pixels (20.0MP).
NAOS Series
The NAOS series is designed for versatility and cost-effectiveness, offering high quality color CMOS sensor for perfect color reproduction and USB 3.0 output for fast live imaging of up to 50 frames per second at 2.0MP resolution. They operate fluidly in all light and contrast conditions. Includes c-mount interface camera, Progres Gryphax software, USB 3.0 cable, instruction manual.
Gryphax Software
Available in the full line of Gryphax digital microscope cameras, the Gryphax software delivers optimal image quality, accurate calibration and exceptional versatility. Connect the camera, launch the software and start recording data or capturing images with automatic, fast exposure control, panorama, z-stacking, multi-fluorescence, image comparison (side by side), video recording and live-image optimized results. The Windows, MAC and Linux-compatible software features a comprehensive suite of productivity-enhancing tools to meet the demands of scientific research and documentation.
| Brand | Jenoptik ProgRes |
|---|---|
| Product Weight | 1.6 |
| Product Length | 89 mm |
| Product Width | 84 mm |
| Product Height | 93 mm |
| Recommended For | 0 |
| Sensor Type | CMOS |
| Sensor Size | 1 Inch |
| Sensor Details | Sony Back Illuminated CMOS |
| Color/Monochrome | Color |
| Filter | RGB Bayer Pattern |
| Pixel Pitch | 2.4 µm |
| Scan Mode | Progressive |
| Sensitivity | 15.0 e- |
| Dynamic Range | 71.8 dB |
| A/D Conversion | 12 bit |
| Peltier Cooling | No |
| Shutter | Rolling Shutter |
| Camera Mount | C-Mount |
| Camera Output Resolutions | 5400 x 3600; 2700 x 1800; 1800 x 1200 |
| FPS @ Max Res | 30 FPS @ 2700 x 1800 |
| FPS @ Min Res | 50 FPS @ 1800 x 1200 |
| Camera Interface | USB 3.0 |
| White Balance | Area-of-Interest |
| Black Balance | Dark Frame Correction |
| Software Included | GRYPHAX |
| Driver API Compatibility | TWAIN |
| Power Source | USB |
| File Formats | BMP |
| Exposure Control | Area-of-Interest |
| Exposure Time | 51 µs – 10 s |
| Included Accessories | Progres Gryphax software, USB 3.0 cable, instruction manual. |
| Supported Operating Systems | Windows 10 |
| System Requirements | 2GB RAM Recommended |
| Certifications | CE |
| Camera Warranty | 2 Years |
| Imaging Compatibility (with adapters) | C-Mount |
