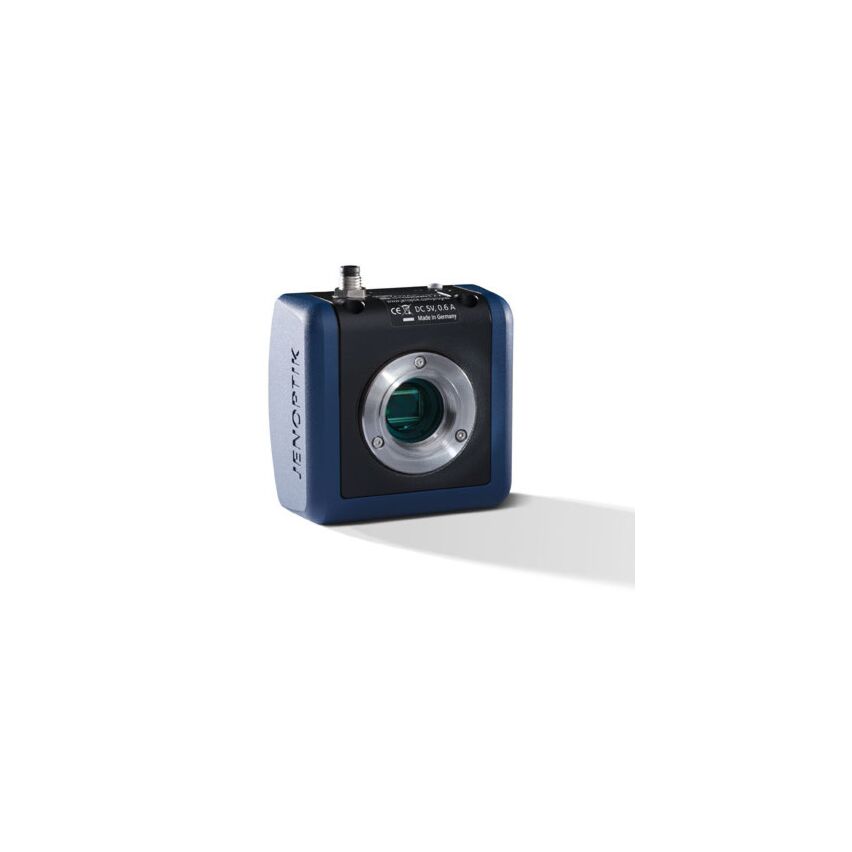

Gryphax Subra 2.0 MP HD CMOS Color Digital Microscope Camera
Call for Price: (877) 409-3556
- 2.0 MP color CMOS camera with 2/3" sensor
- Win, Mac & Linux compatible
- Near perfect color reproduction
- Fast (30 FPS) refresh rates, live imaging
- High speed USB 3.0 Output
- Standard C-Mount Interface
- Legendary German engineering
Summary
New from Jenoptik, the Gryphax series Subra is a 2.0 megapixel CMOS microscope camera with USB 3.0 output for rapid, HD quality video and image data transfer. Pixel size is 5.5µm x 5.5µm with maximum resolution of 2048 x 1024 pixels (2.0MP).
Subra HD Series
The Subra series is designed for versatility and cost-effectiveness, offering high quality color CMOS sensors for perfect color reproduction and USB 3.0 output yields fast live imaging of up to 30 frames per second at 2.0MP resolution. They operate fluidly in all light and contrast conditions. Includes camera, Progres Gryphax software, USB 3.0 cable, instruction manual.
Gryphax Software
Available in the full line of Gryphax digital microscope cameras, the Gryphax software delivers optimal image quality and accurate calibration and measurements. The Windows, MAC and Linux-compatible software features a suite of productivity-enhancing tools to meet the demands of scientific research and documentation.
| Brand | Jenoptik ProgRes |
|---|---|
| Product Weight | 1.6 |
| Product Length | 89 mm |
| Product Width | 84 mm |
| Product Height | 93 mm |
| Recommended For | 0 |
| Sensor Type | CMOS |
| Sensor Size | 2/3 Inch |
| Color/Monochrome | Color |
| Filter | RGB Bayer Pattern |
| Pixel Pitch | 5.5 µm |
| Scan Mode | Progressive |
| Sensitivity | 13.5 e- |
| Dynamic Range | 56 dB |
| A/D Conversion | 12 bit |
| Peltier Cooling | No |
| Shutter | Global Shutter |
| Camera Mount | C-Mount |
| Camera Output Resolutions | Full HD 1920 x 1080 pixel up to 2048 x 1084 pixel |
| FPS @ Max Res | 30 FPS |
| Camera Interface | USB 3.0 |
| White Balance | Area-of-Interest |
| Black Balance | Dark Frame Correction |
| Software Included | GRYPHAX |
| Driver API Compatibility | TWAIN |
| Power Source | USB |
| Exposure Control | Area-of-Interest |
| Exposure Time | 52 µs – 2 s |
| Included Accessories | Progres Gryphax software, USB 3.0 cable, instruction manual. |
| Supported Operating Systems | Windows 10 |
| System Requirements | 2GB RAM Recommended |
| Certifications | CE |
| Imaging Compatibility (with adapters) | C-Mount |
