HD1500TM Color HD 2MP CMOS 60FPS HDMI USB 2.0 Digital Microscope Camera and 11.6" Screen

SKU:

HD1500TM

In stock

You pay: $1,750.00

Free Shipping,

30 Day Money Back Guarantee

High definition 1080P HDMI and USB2.0 output
Streaming HDMI output direct to included 11.6" monitor at 60 fps
Auto white balance for color accuracy
Included memory card slot
Measurement software

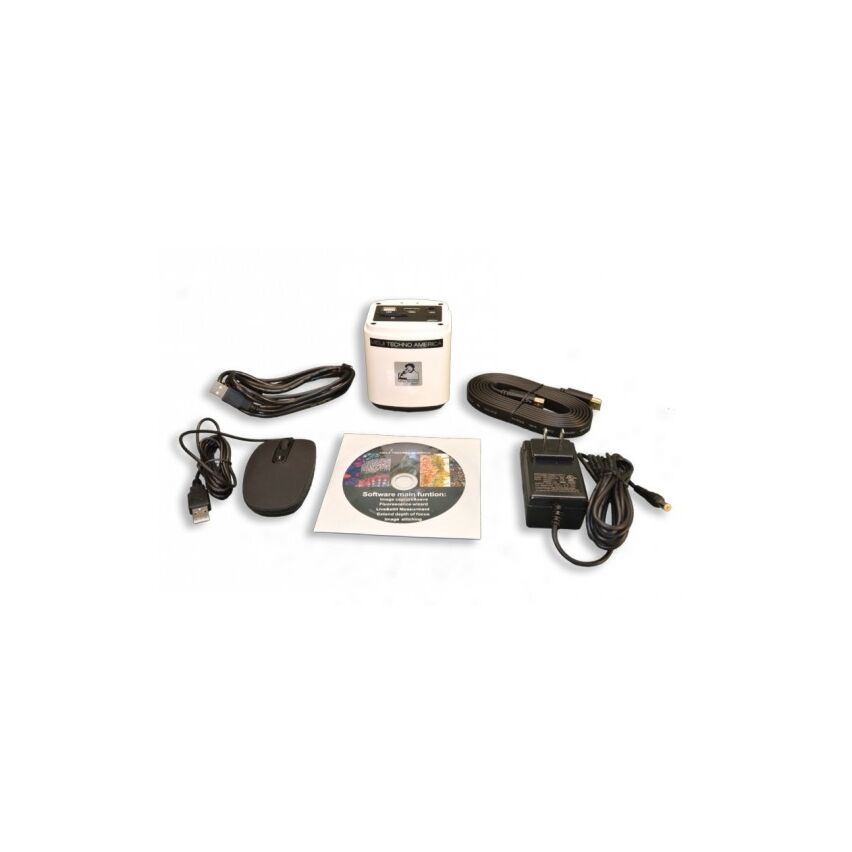

HDMI cable and USB remote included

Customer Support

Talk to one of our experts now!

Email Call

Product Details

Summary

The HD1500TM is our full featured 6 MP camera with a 1/3” CMOS chip and 11.6" screen. A 0.3X C” mount adapter (MA151/35/03) is needed to attach it to any standard Meiji Techno America Trinocular Microscope. The HD1500T features a full HD (1080x1920) resolution, which provides high fidelity images with a refresh rate of 60fps- frames per second when connected via HDMI, so there is absolutely no lag in the live video feed when moving your specimen or part.

More Information

More Information
Brand	Meiji Techno
Warranty	1 Year
Product Weight	2
Recommended For	0
Sensor Type	CMOS
Sensor Size	1/2.5 Inch
Sensor Details	SONY IMX236
Color/Monochrome	Color
Filter	RGB Bayer Pattern
Pixel Pitch	2.8um x 2.8um
Scan Mode	Progressive
Peltier Cooling	No
Shutter	Electronic
Camera Mount	C-Mount
Resolution	2.0 megapixels
FPS @ Max Res	60 @ 1920 x 1080
Camera Interface	USB 2.0
White Balance	Automatic
Driver API Compatibility	DirectX
Power Source	External Power Supply
File Formats	BMP
Exposure Control	Automatic
Exposure Time	0.1ms - 999s
Operating Temperatures	20-60 Deg. C
Operating Humidity	30-80% RH
Supported Operating Systems	Windows 10
System Requirements	2GB RAM Recommended
Certifications	CE
Cable Length	2.5m (8ft)
Camera Warranty	1 Year
Software Support	6 Months
Imaging Compatibility (with adapters)	C-Mount
