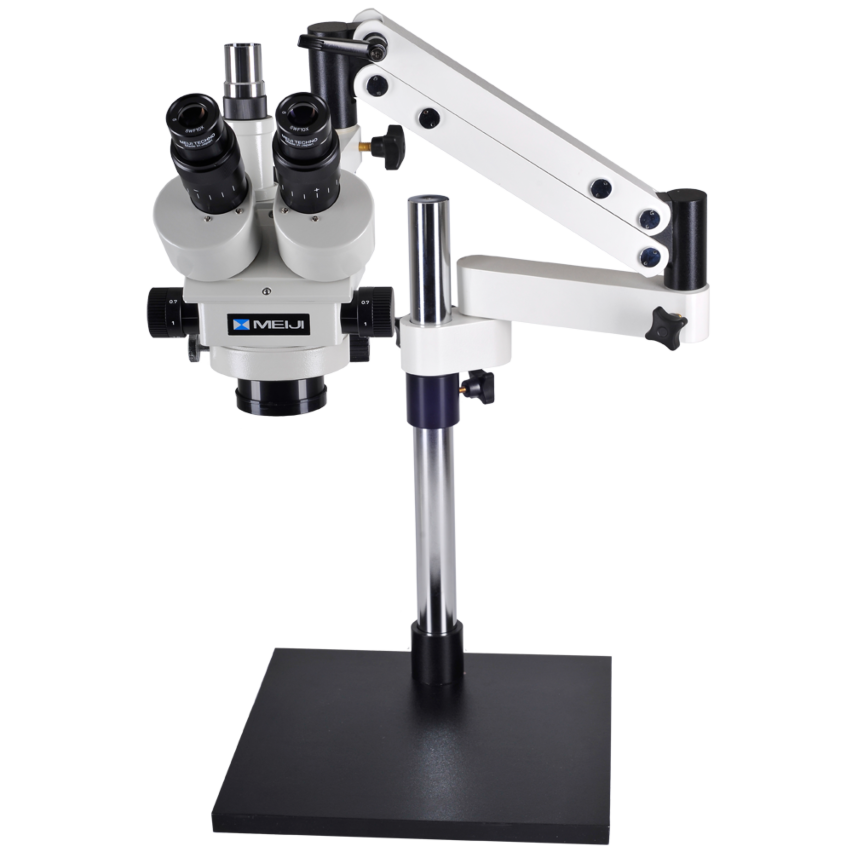

EMZ5-V7 7x-45x Boom Stereo Microscope
From $2,236.50
$3,104.40
- Most popular Meiji stereo zoom microscope head
- 0.7x-4.5x zoom magnification
- Choice of eyepieces
- Omano articulating arm V7 boom stand
- Included ring light illuminators
- Binocular or trinocular formats
- Optional barlow lenses
- Limited Lifetime Warranty
Summary
The Meiji EMZ5-V7 combines Meiji's best-selling EMZ-5 0.75-4.5x stereo zoom microscope body with the flexibility of the Omano V7 articulating arm boom stand for an affordable and high quality inspection microscope. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.
Microscope Head
The EMZ-5 stereo head is by far the most popular Meiji stereo microscope head. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45° and includes interpupillary adjustment of 54mm-75mm. There are dual +/-5 diopters for convenient individual eye focusing. The head rotates through 360° for flexible viewing positions.
Available in binocular or trinocular format and also with click-stop detents for precise levels of magnification. The trinocular port directs light to the right eyetube and the trinocular tube simultaneously. Please note that a trinocular adapter is required to fit your camera.
An 84mm Omano focus ring is also included. Please call if you need an alternative Meiji focus ring.
Stand
The V7 articulating boom base weighs 57 lbs. yet folds into a 13 x 13" space when not in use. Well-balanced, stable with smooth, controlled movement, the arm's first link can be removed to achieve even greater stability. The pole stands 21" high and the spring-powered articulating arm has an effective horizontal extension of 35". An 84mm focus block and a 25mm hanging bar are included. The stand is also available with a robust U-Clamp attachment which can securely fasten to workbenches up to 2.5 inches thick.
As with most Omano boom stands, a hanging bar is included that enables angled viewing positions. The hanging bar bracket is spring-loaded so that the lever can be moved out of the way without having to release the pre-set position of the microscope head.
Optional Illumination
For convenience we offer a variety of ring lights and auxiliary barlow lenses with this microscope. Please call for alternative illumination solutions.
EMZ-5 VIDEO
| Brand | Meiji Techno |
|---|---|
| Warranty | Lifetime Limited Warranty |
| Recommended For | 0 |
