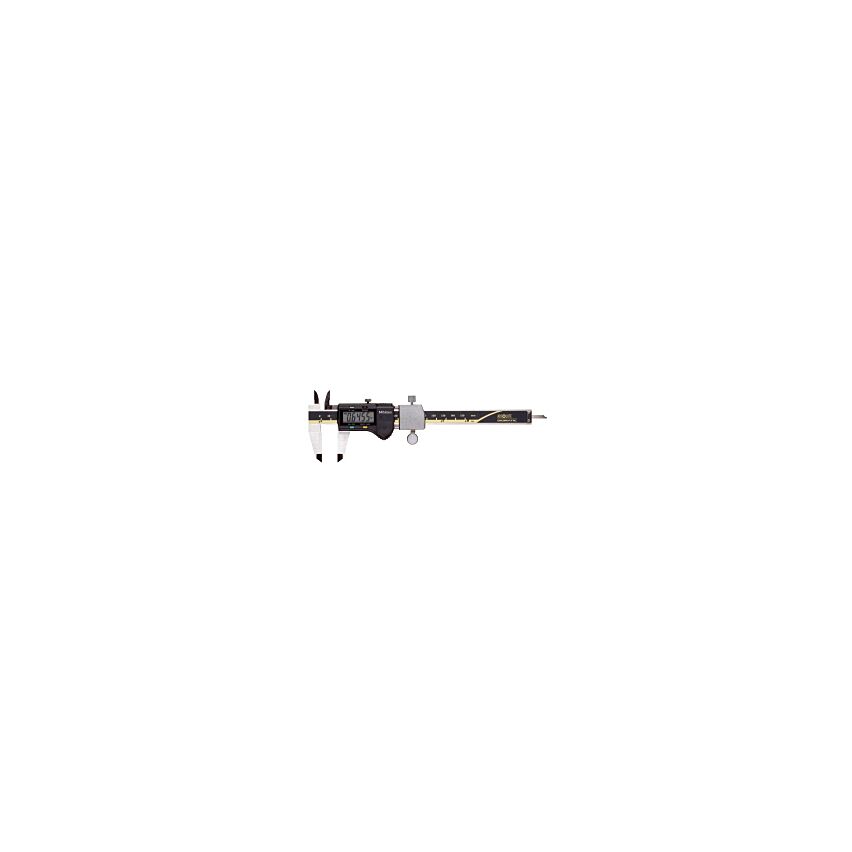

Mitutoyo ABSOLUTE Snap Caliper Series 573

Mitutoyo ABSOLUTE Snap Caliper Series 573

Inch/Metric models include:

• Mitutoyo 573-281-30
• Mitutoyo 573-282-30

Metric models include:

• Mitutoyo 573-181-30
• Mitutoyo 573-182-30

FEATURES

• The ABSOLUTE Digimatic snap caliper features a spring-loaded mechanism to allow quick and efficient GO/NO-GO inspection for mass production parts.
• With SPC data output.
• Supplied in fitted plastic case.

Absolute Scale

Built-in ABS (absolute) scale means that these calipers are ready to use immediately after power-on without origin resetting. It’s as easy as vernier caliper measurements.

TECHNICAL DATA OF DIGITAL MODEL

Accuracy: Refer to the list of specifications.

Resolution: 0.01mm or .0005"/0.01mm

Repeatability: .0005” / 0.01mm

Display*: LCD

Length standard*: ABSOLUTE electrostatic capacitance type linear encoder

Measuring force: 7N to 14N (700gf to 1400gf)

Jaw retraction: 2mm

Max. response speed*: Unlimited

Battery*: SR44 (1 pc.), 938882

Battery life*: Approx. 3.5 years under normal use

FUNCTION OF DIGITAL MODEL

Origin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (on inch/metric models only)

Alarm: Low voltage, Counting value composition error

DIMENSION AND MASS
