Mitutoyo Blade Type Caliper Series 573,536-ABSOLUTE Digimatic and Vernier Type

SKU:

M-BTCS55ADVT

Out of stock

30 Day Money Back Guarantee

Can be used for OD and depth measurements
Inch/Metric and Metric model options available
UWith IP67 Protection
Offers SPC data output

Customer Support

Talk to one of our experts now!

Email Call

Product Details

Mitutoyo Blade Type Caliper Series 573,536-ABSOLUTE Digimatic and Vernier Type

Inch/Metric model:

Mitutoyo 573-734-20

Metric models include:

Mitutoyo 573-634-20	Mitutoyo 536-135
Mitutoyo 536-136	Mitutoyo 536-134

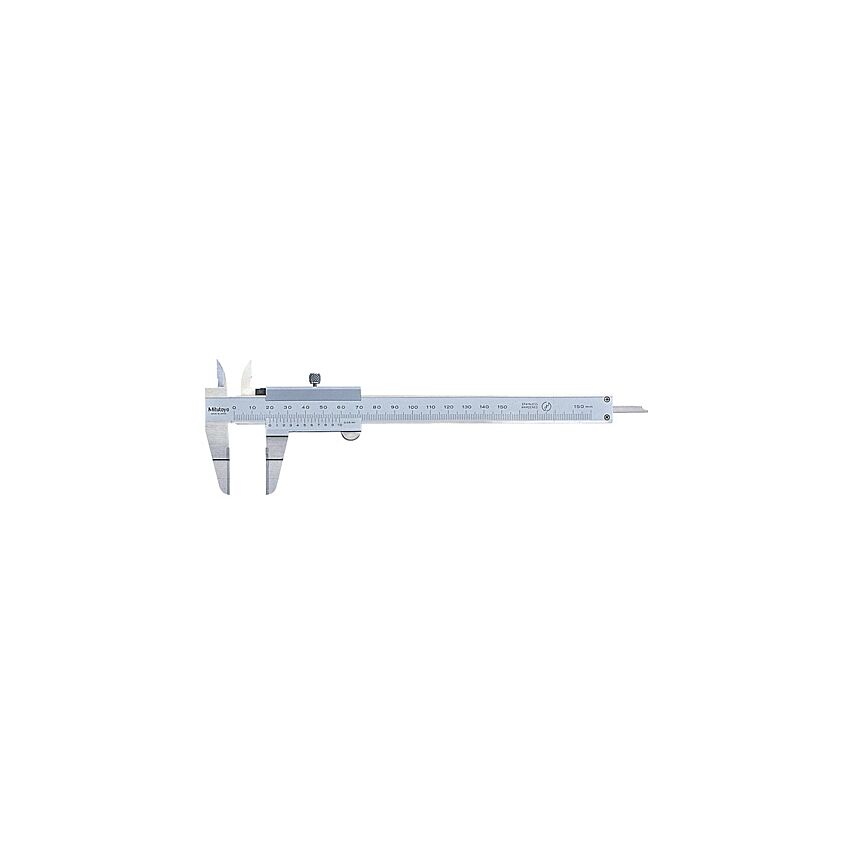

Mitutoyo Blade Type Caliper Series 573,536-ABSOLUTE Digimatic and Vernier Type

Mitutoyo Blade Type Caliper Series 573,536-ABSOLUTE Digital Screen

Mitutoyo Blade Type Caliper Series 573,536-ABSOLUTE Digimatic and Vernier Type Illustration

FEATURES

The thin blade type jaws fit into very small grooves and making previously difficult outside measurements far easier to obtain.
The OD measuring faces are carbide-tipped.
With depth bar.
With SPC data output. (Series 573)
Supplied in fitted plastic case.
TÜV Rheinland Certified

IP67 Illustration

IP67 Protection Level

Level 6: Dust-tight/ No ingress of dust.

Level 7: Protected against the effects of temporary immersion in water. Ingress of water in quantities causing harmful effects shall not be possible when the enclosure is temporarily immersed 1 meter in water under standardized conditions of pressure and time (30 min.).

TECHNICAL DATA OF DIGITAL MODEL

Accuracy: Refer to the list of specifications.

Resolution*: 0.01mm or .0005"/0.01mm

Graduation**: 0.05mm

Display*: LCD

Length standard*: ABSOLUTE electrostatic capacitance type linear encoder

Max. response speed*: Unlimited

Battery*: SR44 (1 pc.), 938882

Battery life*: Approx. 3.5 years under normal use

*Digital models **Analog models

FUNCTION OF DIGITAL MODEL

Origin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (on inch/metric models only)
