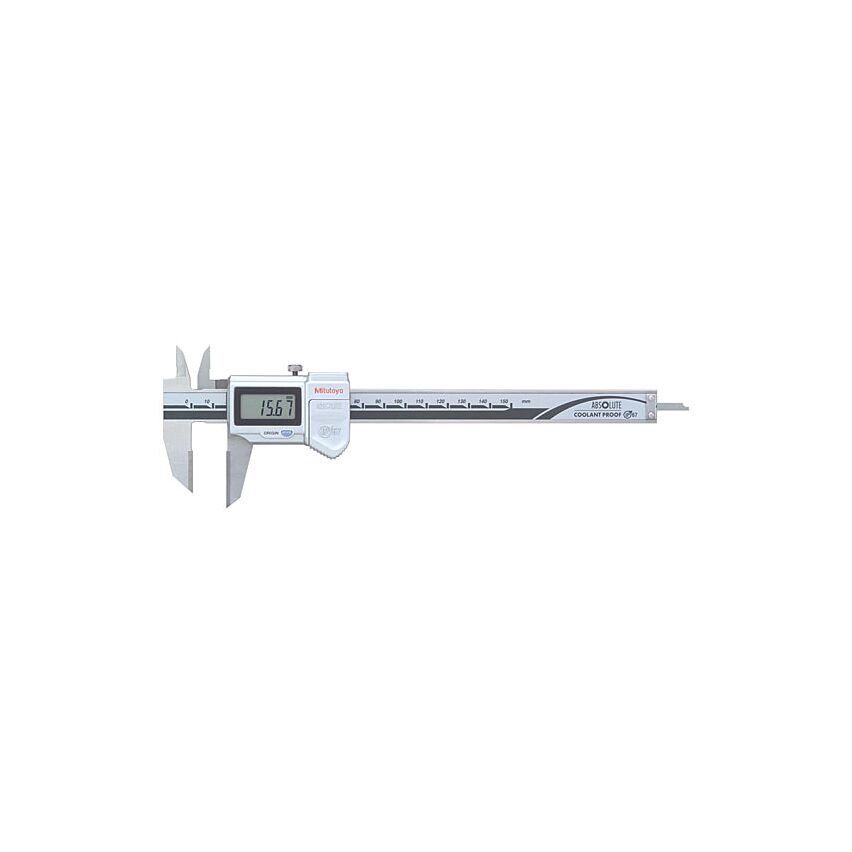

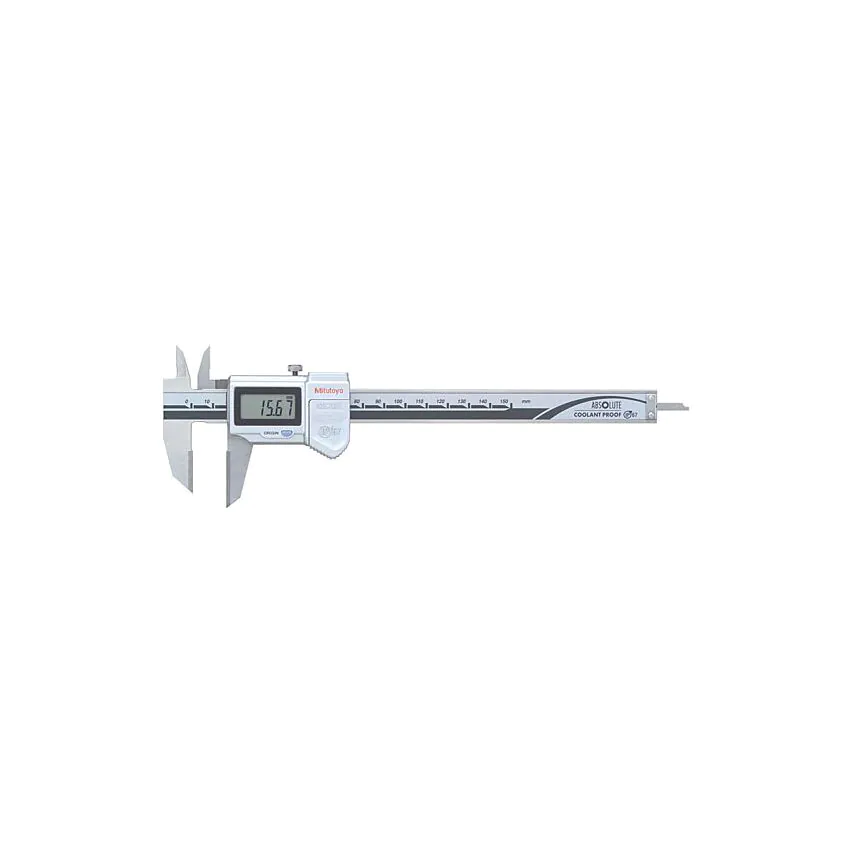

Mitutoyo Scribing Caliper Series 573,536-ABSOLUTE Digimatic and Vernier Type

Mitutoyo Scribing Caliper Series 573,536-ABSOLUTE Digimatic and Vernier Type

Series 573 & 536

Metric digital models include:

• Mitutoyo 573-676
• Mitutoyo 573-677-20
• Mitutoyo 573-679

Metric vernier models include:

• Mitutoyo 536-221
• Mitutoyo 536-222
• Mitutoyo 536-223

FEATURES

• The carbide-tipped jaws facilitate fine scribing on workpiece.
• With depth bar.
• With SPC data output. (Series 573)
• Supplied in fitted plastic case.
• TÜV Rheinland Certified

IP67 Protection Level Level 6: Dust-tight/ No ingress of dust. Level 7: Protected against the effects of temporary immersion in water. Ingress of water in quantities causing harmful effects shall not be possible when the enclosure is temporarily immersed 1 meter in water under standardized conditions of pressure and time (30 min.).

TECHNICAL DATA OF DIGITAL MODEL

Accuracy: Refer to the list of specifications.

Resolution*: 0.01mm

Display*: LCD

Length standard*: ABSOLUTE electrostatic capacitance type linear encoder

Max. response speed*: Unlimited

Battery*: SR44 (1 pc.), 938882

Battery life*: Approx. 3.5 years under normal use

*Digital models **Analog models

FUNCTION OF DIGITAL MODEL

Origin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (on inch/metric models only)

Alarm: Low voltage, Counting value composition error

DIMENSION AND MASS
