Mitutoyo TM-505B/1005B Series 176 Toolmakers' Microscopes

SKU:

M-TMS176TM

Out of stock

30 Day Money Back Guarantee

Straightforward angle measurement
Monocular microscope with 30º depression angle
Adjustable illumination intensity
15x magnification Eyepiece with 2x magnification objective
13mm Field No.
All models are Digimatic

Customer Support

Talk to one of our experts now!

Email Call

Product Details

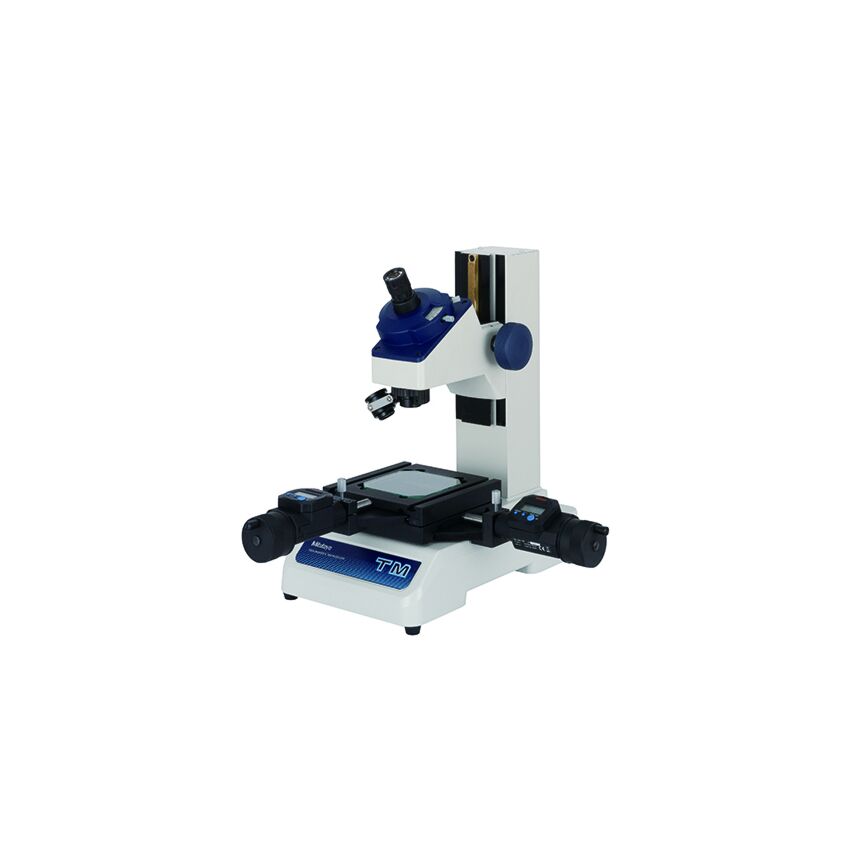

Mitutoyo TM-505B/1005B Series 176 Toolmakers' Microscopes

Bright and Clear Field of View. Best Performance in Small-model Class.

Mitutoyo Toolmaker's Microscopes

FEATURES

The Mitutoyo TM Series is a toolmakers’ microscope well suited for measuring dimensions and angles of machined metals. It also can
be used to check the shape of screws and gears by attaching an optional reticle. The compact body makes it ideal for use on shop floors with limited space.

Angle measurement is performed easily by turning the angle scale disc to align the cross-hair reticle with the workpiece image.
Illumination intensity can be adjusted.
Included standard accessories create an overall magnification of 30X. Magnifications can be changed from 20 - 200X by using optional objectives and/or eyepieces.

TECHNICAL DATA

Optical tube: 90º broken cross-hair reticle (176-126), Erect image, Diopter adjustable
Eyepiece protractor: Graduation: 1º, Protractor range: 360º, Minimum reading by vernier: 6’
Eyepiece (176-116): Magnification: 15X, Field number: 13
Objective (176-138): Magnification: 2X, Working distance: 2.638” (67mm), Numerical aperture: 0.07
Total magnification: 30X
Transmitted illumination: 3W LED, GIF (green) ﬁlter, Stepless intensity adjustment
Reflected illumination: 3W LED, Stepless intensity adjustment, Adjustable position
Power supply: 120 V AC, 50/60Hz
Power consumption: 100VA
Mass: TM-505B: Approx. 30.8 lbs. (14kg), TM-1005B: Approx. 33 lbs. (15kg)
