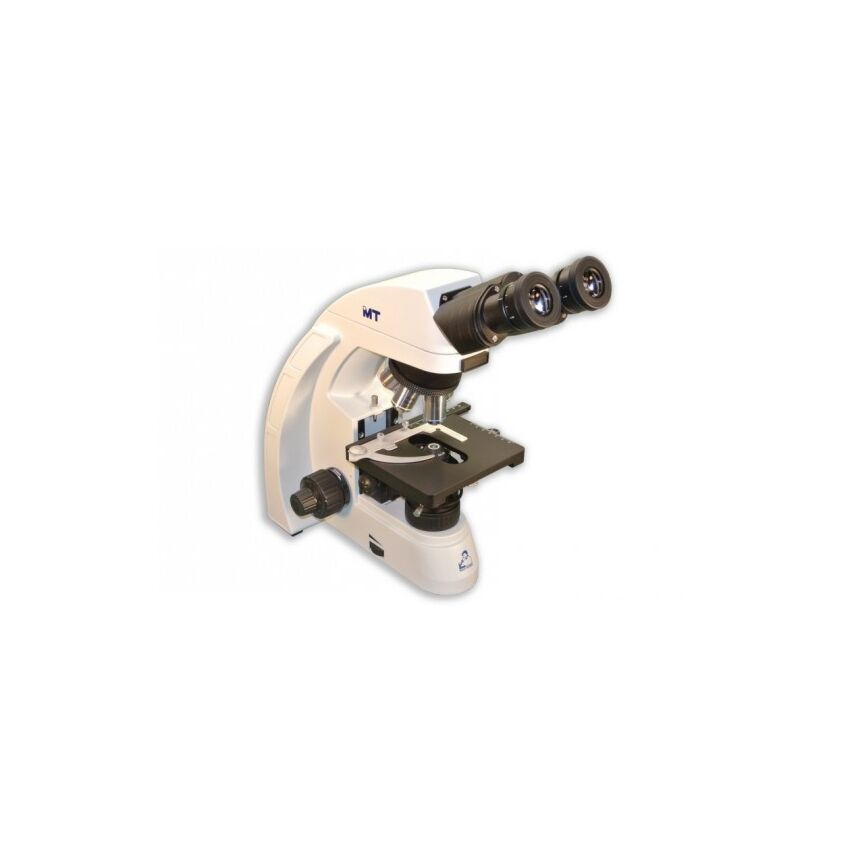

MT-50 Binocular Compound LED Student Microscope
SKU:
MT-50
In stock
You pay: $1,660.00
Free Shipping,
30 Day Money Back Guarantee
- Achromatic DIN Plan 4X, 10X, S40X, S100X Objectives
- 3W LED variable intensity illumination
- Reverse-facing ball-bearing nosepiece
- ABBE 1.25 NA condenser with iris diaphragm
- Ergonomic design for ease of operation
- Recommended for the life sciences classroom
Summary
The new Meiji MT-50 educational microscope brings a fresh, clean design to the advanced academic and teaching classroom. These easy-to-use, competitively-priced microscopes feature Meiji Plan optical quality and cool, crisp rechargable LED illumination to help students maximize their learning experience. Rugged ergonomics ensure years of dependable service in the biology laboratory or life sciences classroom.Optics
The MT-50 microscope features a binocular head with the ocular inclined at a comfortable 30°. The DIN 10X WF eyepiece includes a pointer for easy reference and correlation. The optical system includes four Achromatic Infinity Corrected Plan Achromat 4x, 10X, 40X, 100x oil objectives set in a reverse-facing ball-bearing-mounted nosepiece for ease of operation.Stage & Focus
The ceramic coated, right-handed flat top stage measures 130mm x 130mm with two stage clips and coaxial coarse-fine focus knobs with safety stop, friction adjustment and graduations to 2-micron precision.Condenser & Illumination
An Abbe 1.25 NA Condenser with iris diaphram height adjustment is included, along with 3W LED variable-intensity illumination.Accessories
Manual, AC adapter, dust cover. 1-Year Warranty.| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
| System Type | Brightfield |
| Optical Design | DIN 160mm |
| Head Type | Binocular |
| Head Rotation | 360 Degrees |
| Ocular Angle | 30° |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| View Orientation | Upright View |
| Ocular Tube Diameter | 23 mm |
| Nosepiece Orientation | Reversed |
| Nosepiece Style | Quadruple (4) |
| Focus Controls | Coarse & Fine |
| Focus Mechanism | Rack & Pinion |
| Focus Control Location | Dual Ambidextrous |
| Focus Controls Graduated? | No |
| Focus Control Safety Stop | Rack Stop |
| Stage Type | Fixed |
| Stage Features | Ceramic Coated |
| Stage Dimensions | 130mm x 130mm |
| Stage Range Graduated? | No |
| Includes Eyepieces? | Yes |
| Included Eyepiece Quantity | 1 |
| Included Eyepieces (X) | 10X |
| Eyepiece Style | WF Widefield (FN 18mm) |
| Includes Eyecups? | Yes |
| Min Standard Mag | 40X |
| Max Standard Mag | 1000X |
| Included Objectives (Qty) | 4 |
| Objective Lens | Semi-Plan |
| Included Objective Types | Brightfield |
| Included Objectives Parfocal Adjustable? | No |
| Objective 1 Description | Plan 4X / NA 0.10 |
| Objective 2 Description | PLAN 10X / NA 0.25 |
| Objective 3 Description | PLAN 40X / NA 0.65 |
| Objective 4 Description | PLAN 100X / NA 1.25 |
| Condenser Type | Abbe Brightfield |
| Condenser Features | Achromatic |
| Condenser N.A. | 1.25 mm |
| Illumination Type | LED |
| Illumination Style | Transmitted |
| Collector Type | Simple |
| Transmitted Light Type | LED |
| Transmitted Light Control | Variable |
| Power Supply | Universal Switching 100V-240V AC |
| Imaging Compatibility (with adapters) | 23mm |
| Reticles Available? | No |
| Included Extras | Dust Cover |
| Case Included? | No |
