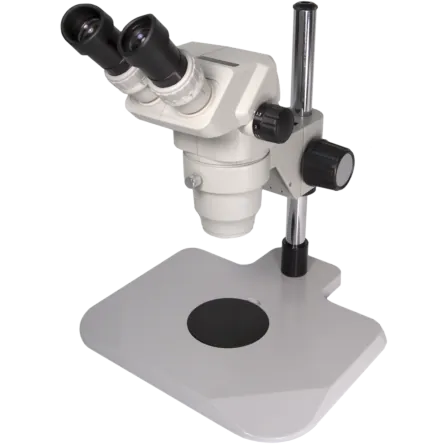

OM2040-V10 20X / 40X Dual Power Stereo Boom Microscope

0.5X Barlow Lens For OM2300 Series Microscopes. Product is identical to .75x model shown.

Please refer to our Barlow Lens Chart for more information.

0.75X Barlow Lens For OM2300 Series stereo microscopes. Product is identical to .75x model shown.

Please refer to our Barlow Lens Chart for more information.

1.0X Protective Barlow For OM2300 Series stereo microscopes. Product is identical to .75x model shown.

Please refer to our Barlow Lens Chart for more information.

2.0X Barlow Lens For OM2300 Series stereo microscopes. Product is identical to .75x model shown.

Please refer to our Barlow Lens Chart for more information.

SK2-1.3X

The new OptixCam Summit K2 Series 1.3MP digital microscope camera is a terrific way to quickly turn any modern microscope into a digital teaching tool. Designed for students and hobbyists, this sturdy and affordable camera will maximize a student's ability to discover, analyze and learn from their microscopy experiences. It is well-suited to both PC and Mac operating systems with software designed to get you up and running with both live and still imaging. The camera includes a C-mount adapter with 0.5X reducing lens and 23.2mm smooth bore for mounting on the eyetube or trinocular port of most microscopes. We highly recommend this camera for the hobbyist, coin-collector, educator and all general microscopy use.

Summit K2 Series Features

The brand new OptixCam Summit K2 Series cameras represent the latest innovation in digital microscopy, built to meet the documentation demands of routine life science, industrial and educational applications at very competitive price-points. Designed around the proven Aptina MT9T001 CMOS color sensor, they share a broad dynamic range, progressive scan and 12-bit parallel resolution for accurate color replication and optimal image quality.

All Summit K2 Series microscope cameras share a rugged aluminum alloy body fitted with different size Aptina CMOS sensors depending on the model. They stand out for remarkable color reproduction as well as a large color palette for improved resolution and sensitivity. In addition, the included 0.5x reducing lens makes for an image that is significantly closer to that seen through the eyepieces with the naked eye. Robust documentation and measuring software is included with all the OptixCam K2 cameras along with a c-mount adapter with 23.2mm smooth bore to fit most microscopes.

Other features include fast refresh rates, auto/ manual exposure and white balance control, full screen live imaging, time-lapse photography and user-friendly image capture. In short, these microscope cameras offer a well-designed package at an affordable price. We recommend them for any standard photomicrography application where the primary requirements are image capture and documentation.

Software

The included K2View software provides for excellent color rendering and fast image processing especially when capturing multiple images. Simple, intuitive and easy-to-use controls offer image capture, notation, geometric measuring and storage in JPG, BMP, TIFF, RAW format. The software also includes auto white balance, color enhancement, anti-flicker and other benefits. TWAIN and DirectX plug-ins are also included on the installation CD and are independent of the main driver, allowing discreet control of the camera for these applications.

Accessories

SK2-10X

The new OptixCam Summit K2 Series 10.0MP digital microscope camera is specifically designed as a cost-effective and versatile solution for the wide-ranging imaging requirements of life science researchers, healthcare professionals, industrial inspectors and other disciplines. 10.0MP resolution offers excellent details for images projected on large screens or when printing with large-format applications. PC and MAC users benefit from easy-to-use feature-rich software, accurate color, clarity and image detail, while low noise USB 2.0 data transfer maximizes workflow and productivity.

Summit K2 Series Features

The Summit K2 series camera bring affordable digital microscopy to a wide range of documentation demands of routine life science, industrial and educational environments. Built around the proven Aptina MT9T001 CMOS color sensor, they share a broad dynamic range, progressive scan and 12-bit parallel resolution for accurate color reproduction and optimal image quality.

All Summit K2 microscope cameras share a rugged aluminum alloy body fitted with different size Aptina CMOS sensors depending on the model. Advanced documentation and measuring software is included along with a C-mount adapter with 23mm smooth bore and 0.5X reducing lens to more closely match the captured image with the eyepiece view. Optional focusing lenses, calibration slide and 30mm and 30.5mm collars are available.

Software

The included K2View software creates a complete imaging solution with intuitive camera controls, image capture and advanced options like annotation, geometric measuring and storage in JPG, BMP, TIFF, PNG, PCX AND TARGA format. The software also includes auto white balance, color enhancement, anti-flicker and other benefits. TWAIN and DirectX plug-ins are also included on the installation CD and are independent of the main driver, allowing discreet control of the camera for these applications. PLEASE NOTE: MAC capability is limited to image capture only.

Accessories

Summary

Features

HDMI (High-Definition Multimedia Interface) technology brings a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The OCS-HDMI1 offers this technology in an affordable and versatile package for the PCB auditor, industrial inspection line or clinical teaching laboratory.

Mounting & Controls

The OCS-HDMI1 is specifically designed to enhance the Omano line of stereo inspection systems, with a standard C-mount interface which will accept any C-mount adapter. Improved functionality includes on-camera controls with intuitive, menu-driven buttons for power, pan up and down, zoom in and out, image save or video record (to optional SD card), and Auto White Balance on/off. In addition, a large focus knob at the top of the camera offers fine image focus adjustment. A 0.37X reducing adapter (not included) is required to mate the camera with any Omano 23mm smooth bore microscope eyeport or trinocular tube.

Processing & Output

The camera has fast white balance correction, excellent color reproduction and USB Image capture resolution of 3.0 MP, or HDMI video capture resolution of 1280 x 720P @ 30 fps. The OCS-HDMI1 quickly reacts to changing lighting conditions in any life science, clinical or material application, sending a sharp video output to an HDMI monitor. A Micro-SD card memory slot offers additional output options and storage capacity (SD card not included).

Accessories

Summary

The new Optixcam OCS-HDMI-1080PU brings simultaneous HDMI and USB2.0 output to professionals who require high-definition CMOS color microscopy documentation. Like its HDMI-output cousin (NH1080P), the 1080PU is an industrial-designed, stand-alone imaging solution offering 2.0MP still capture to an SD card, and 1080p video preview resolution with superb color reproduction and real-time frame rates of 60 fps via HDMI, or 30 fps via USB2.0 or SD card output.

Features

HDMI (High-Definition Multimedia Interface) technology brings a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The OCS-HDMI-1080PU offers this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory. The camera offers direct streaming to an HDMI monitor without the complexity of computer software, making it an ideal imaging solution for fast-paced industrial environments and assembly line inspection stations.

Mounting & Controls

The OCS-HDMI-1080PU is specifically designed to enhance the Omano line of stereo inspection systems, with a robust metal housing, C/CS Mount and two useful tripod screw attachment points. Improved functionality includes on-screen controls with intuitive, menu-driven buttons for RGB adjustment, White Balance, red and green cross-hair cursor symbology and Auto Exposure.

Note: An SK2 series camera adapter (like the SK2-CA037X) is included for mounting the camera to any microscope with a smooth bore 23mm optical tube.

Processing & Output

The camera has fast white balance correction for excellent color reproduction and a 2.0MP maximum output resolution of 1920 x 1080 in BMP format. With 60 FPS live HDMI response rate, the OCS-HDMI-1080PU quickly reacts to changing lighting conditions in any life science, clinical or material application, sending a sharp video output to an HDMI monitor.

For researchers needing in-depth image analysis, the camera also offers traditional USB2.0 output to a pc or mac operating environment for a host of processing options including 2-dimensional measurement, image stitching, extended depth of focus, segmentation, stacking and color composition. A tethered cable enables remote capture of still images to an SD card, sold separately.

Accessories

Accessories include USB mouse, HDMI cable, USB2.0 cable, AC power supply, Software CD with manual and SDK. Camera dimensions: 3 x 2.75 X 3.6". Shipping dimensions: 10 X 6 X 3", 2 LBs.

This economical 0.37X focusing adapter will mount the Optixcam SK2 or SK3 series digital camera to any microscope with a 23.2mm smooth bore eyetube or trinocular port. It is optimized to project a clear flat-field image onto a 1/3 inch sensor.
