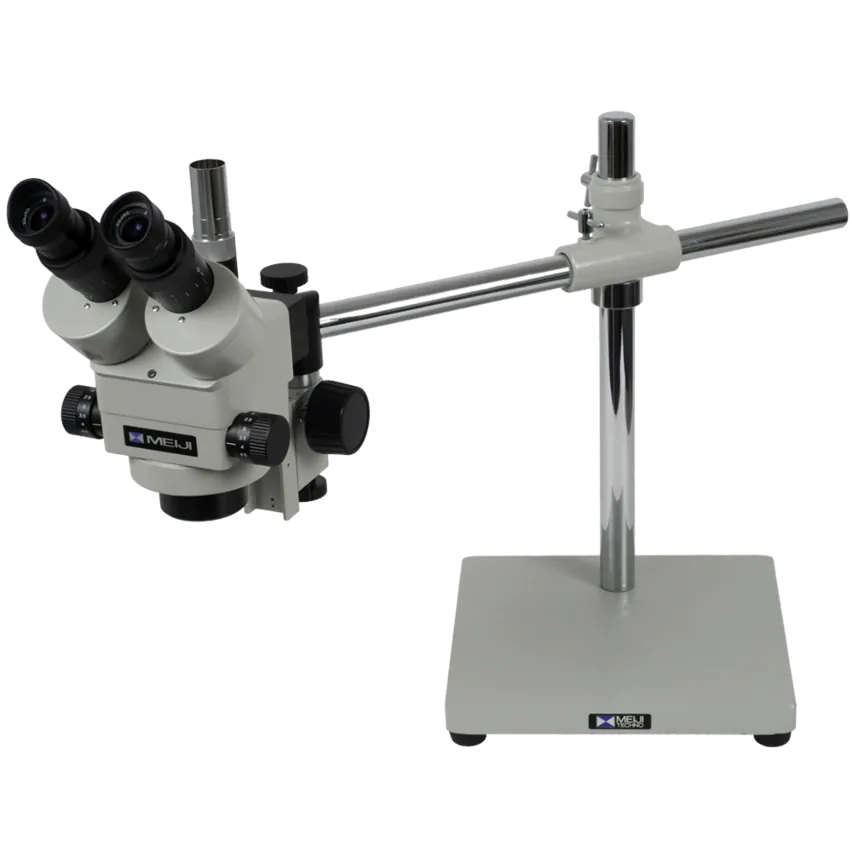

EMZ-8TR-S4100 7X-45X Boom Stereo Microscope

The EMZ-8TR stereo trinocular head is a Meiji workhorse, bringing exceptional optical quality in a compact, ergonomic design. With optional 10x eyepieces, the head offers smooth, zoom magnification from 7x - 45x while retaining focus throughout the zoom range. The trinocular port beam-splitter allows simultaneous viewing from all three eyetubes to easily facilitate on-screen displays and video applications with an appropriate digital camera.

The eyetubes are set at 45-degree inclination for viewing comfort, rotate 360-degrees, and include dual dioptric adjustments. Interpupillary eye adjustment is 54mm - 75mm and working distance is 81mm. Higher magnification is available with optional eyepieces and objectives.

The EMZ-8TRD stereo trinocular head is a Meiji workhorse, bringing exceptional optical quality in a compact, ergonomic design. With optional 10x eyepieces, the head offers smooth, zoom magnification from 7x - 45x while retaining focus throughout the zoom range. The trinocular port beam-splitter allows simultaneous viewing from all three eyetubes to easily facilitate on-screen displays and video applications with an appropriate digital camera.

Solid click-stop detents offer the user a quick, easy means of returning to a known magnification setting, increasing accuracy and productivity in repeated imaging applications.

The eyetubes are set at 45-degree inclination for viewing comfort, rotate 360-degrees, and include dual dioptric adjustments. Interpupillary eye adjustment is 54mm - 75mm and working distance is 81mm. Higher magnification is available with optional eyepieces and objectives.

The EMZ-8TR stereo trinocular head is a Meiji workhorse, bringing exceptional optical quality in a compact, ergonomic design. With optional 10x eyepieces, the head offers smooth, zoom magnification from 7x - 45x while retaining focus throughout the zoom range. The trinocular port beam-splitter allows simultaneous viewing from all three eyetubes to easily facilitate on-screen displays and video applications with an appropriate digital camera.

The eyetubes are set at 45-degree inclination for viewing comfort, rotate 360-degrees, and include dual dioptric adjustments. Interpupillary eye adjustment is 54mm - 75mm and working distance is 81mm. Higher magnification is available with optional eyepieces and objectives.

The EMZ-8TRU trinocular stereo head is a Meiji workhorse, bringing exceptional optical quality in a compact, ergonomic design. With optional 10x eyepieces, the head offers smooth, zoom magnification from 7x - 45x while retaining focus throughout the zoom range. The trinocular port beam-splitter allows simultaneous viewing from all three eyetubes to easily facilitate on-screen displays and video applications with an appropriate digital camera.

The head also offers near-vertical illumination, making it ideal for imaging bores, voids or holes. The eyetubes are set at 45-degree inclination for viewing comfort, rotate 360-degrees, and include dual dioptric adjustments. Interpupillary eye adjustment is 54mm - 75mm and working distance is 81mm. Higher magnification is available with optional eyepieces and objectives.

Meiji's F-model Focus Block includes machined rack and pinion gearing for smooth, controlled focus adjustments through 55mm of travel. The dual focus knobs offer tension adjustment and a built-in slip clutch prevents damage to the mechanism or microscope head. Fits 20mm diameter mounting pole.

Meiji's FS Focus Block allows viewing from multiple angles beyond vertical, through the use of a 15.8mm mounting pin and adjustment bracket. This is ideal for specialty applications such as gemology or engraving.

Like other F-series blocks, the FS includes a integral illumination port, machined rack and pinion gearing for smooth focusing movement and 55mm of travel.  The dual focus knobs offer tension adjustment and a built-in slip clutch prevents damage to the mechanism or microscope head. Fits 20mm diameter mounting pole.

MA552 Adapter is needed for attaching to Meiji S-4000 series boom stands.

Super Widefield Eyepiece 10X (paired) stereo microscopes. (With 25mm reticle mount)

Super Widefield High Eyepoint 10x Paired Eyepieces Req'd for EMZ-5H, 8TRH, 13H Series stereo microscopes. (With 25mm reticle mount)
