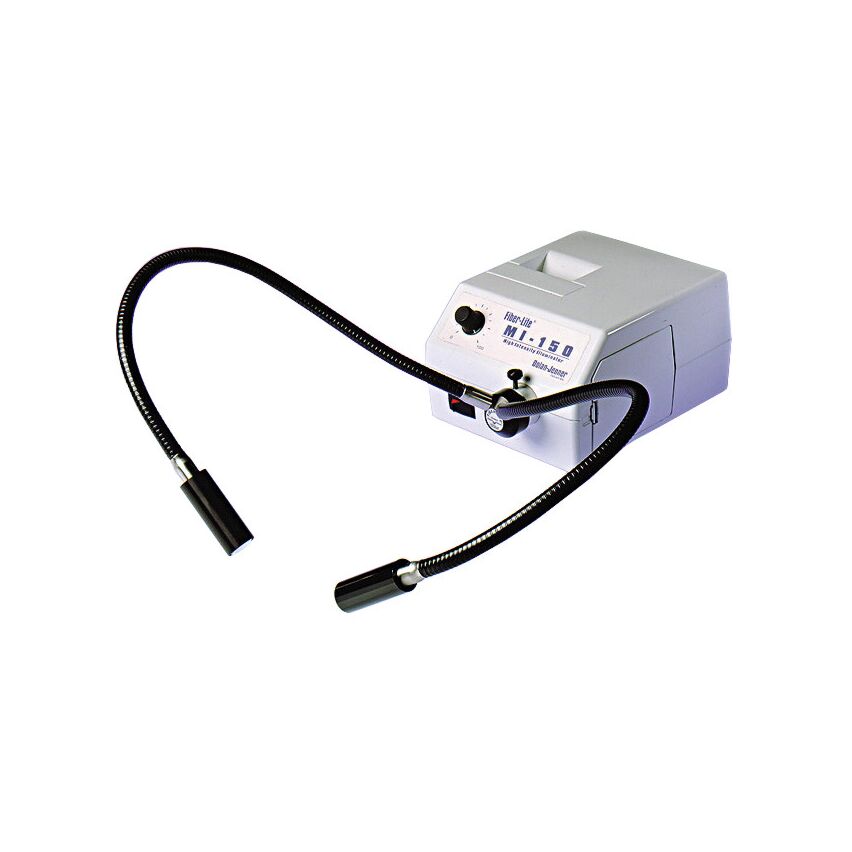

FL151 150W Dual-Arm Fiber Optic Illuminator

Summary

This Meiji professional fiber-optic illuminator provides 150W of powerful halogen illumination and is designed for both industrial and laboratory applications requiring self-supporting fiber-optic illumination.

Illuminator

The quartz halogen light source allows a continuous range of subdued or concentrated lighting, controlled by a rotary dimmer dial on the front panel. The fully self-supporting 24-inch dual fiber-optic arms offer a wide range of positioning options, while a forced-air cooling fan ensures long lamp life. The lamp color temperature is 3200ºK providing 40,000 foot candles of cold illumination.

Dual-Pipe Light Guides

This fiber-optic dual-pipe system provides focused illumination from 2 self-supporting goose neck (or dual) pipe cables. They offer a versatile, 574mm (24") length with an 8mm diameter active fiber optic bundle and are capped with individual variable focusing lens. UL-1571 and CE/CSA 2001 compliant.

• Fuse: 2 A
• Weight: 8 LB
• Package Dimensions: 38x26x21cm
