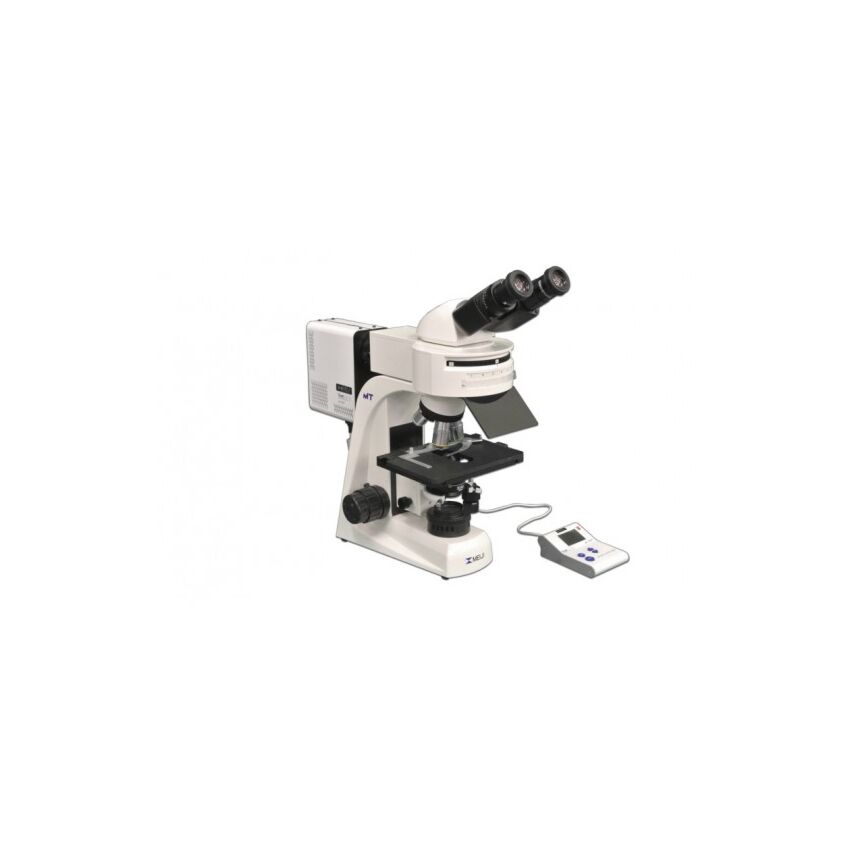

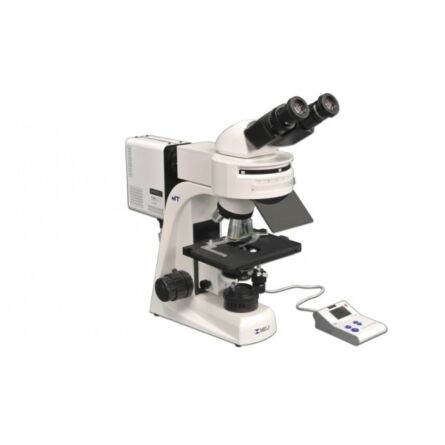

MT6200CW Binocular Epi-fluorescent LED Compound Microscope

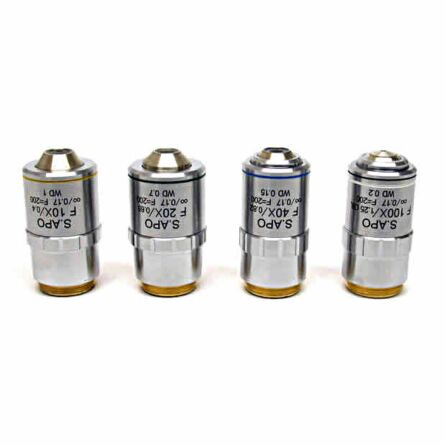

Epi-fluorescence and brightfield illumination are included in this binocular biological microscope with phase contrast, darkfield and polarizing options. The core is Meiji's inifinity corrected optical system combined with four semi-apochromat plan objectives (F4x, F10x, F40xS, F100xS oil) set in a quintuple nosepiece and a choice of two super wide field high eye point eyepieces (SWF10x, SWF15x, SWF20x).
The viewing head is inclined a comfortable 30 degrees and includes inter-pupillary adjustment of 53-75mm and diopter on the left eye tube for convenient individual eye adjustments. A large ceramic-coated mechanical stage measures 191mm x 149mm with an XY range of movement of 100mm x 100mm. The stage has right-hand, drop down coaxial controls.
The included condenser is Abbe 1.25 N.A with iris diaphragm and dovetail mount. An optional Zernike condenser is available for phase work as are U-plan objectives. The 100W mercury, epi-fluorescent illuminator has six modular positions for filter cubes with Basic Blue, Basic Green and an U excitation cubes included.
The blue and green cubes are designed for viewing a single fluorochrome while the green is recommended for use with mercury lamp only. Kohler illumination is powered by 30W halogen on this model with universal voltage.
All Meiji microscopes are manufactured under the strict guidelines established under ISO 9001:2000 Standards and are sold with Meiji Techno's limited lifetime warranty.
| Brand | Meiji Techno |
|---|---|
| Warranty | Limited Lifetime Warranty |
| Notes | A versatile and high quality alternative to some of the better known life science research microscopes |
| Product Weight | 26.5 |
| Product Length | 475 mm |
| Product Width | 210 mm |
| Product Height | 477 mm |
| Recommended For | 0 |
| System Type | Brightfield |
| Optical Design | Infinity Corrected |
| Head Type | Binocular |
| Ocular Angle | 30° |
| Diopter Adjustment | Single |
| Interpupillary Adjustment | Arc (Seidentopf) |
| Interpupillary Adjustment Range | 53 – 75 mm |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| View Orientation | Inverted View |
| Ocular Tube Diameter | 30 mm |
| Nosepiece Orientation | Reversed |
| Nosepiece Style | Quintuple (5) |
| Focus Controls | Coarse & Fine |
| Focus Mechanism | Rack & Pinion |
| Focus Control Location | Dual Ambidextrous |
| Focus Controls Graduated? | Yes |
| Stage Type | Mechanical XY |
| Stage Features | Ceramic Coated |
| Stage Range Graduated? | No |
| Includes Eyepieces? | Yes |
| Included Eyepiece Quantity | 2 |
| Included Eyepieces (X) | 10X |
| Eyepiece Style | SWF Super Widefield (FN 22mm) |
| Includes Eyecups? | No |
| Min Standard Mag | 100X |
| Max Standard Mag | 1000X |
| Included Objectives (Qty) | 4 |
| Objective Lens | Semi-APO Plan |
| Included Objective Types | Epi-Fluorescence |
| Included Objectives Parfocal Adjustable? | No |
| Condenser Type | Abbe Brightfield |
| Condenser Features | Iris Diaphragm |
| Condenser N.A. | 1.25 mm |
| Filter Diameter | 44 mm |
| Illumination Type | LED |
| Illumination Style | Transmitted |
| Collector Type | Kohler |
| Collector Features | Field Diaphragm |
| Transmitted Light Type | LED |
| Transmitted Light Control | Variable |
| Coaxial Light Type | LED |
| Coaxial Light Control | Variable |
| Power Supply | 110V-230V AC Auto Voltage Sensing |
| Epi-Fluorescence System Details | INSERT EPI-FLUORESCENCE DETAILS HERE |
| Imaging Compatibility (with adapters) | 23mm |
| Available Imaging Mounts | 0.3X C-Mount |
| Reticles Available? | No |
| Included Extras | Dust Cover |
| Case Included? | No |
