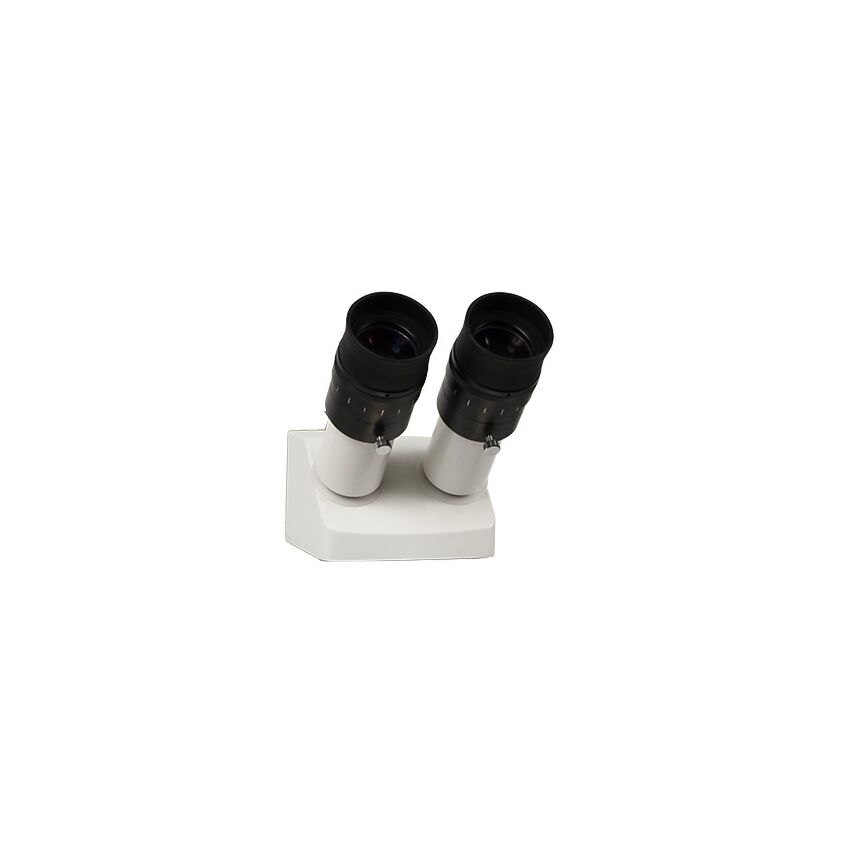

The MA748 stereo head is specifically for the Meiji RZ series zoom microscope, offering exceptional optical quality in a compact, ergonomic design. The eyetubes are set at 45-degree inclination for viewing comfort, rotate 360-degrees, and include dual dioptric adjustments. Interpupillary eye adjustment is 54mm - 75mm.
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
| Head Type | Binocular |
| Optical Design | Greenough Converged |
| Magnification Type | Zoom |
| Ocular Angle | 45° |
| Ocular Tube Diameter | 30.5 mm |
| Barlow Mount Diameter | 50 mm |
| Diopter Adjustment | Dual |
| Interpupillary Adjustment | Arc (Seidentopf) |
| Interpupillary Adjustment Range | 54mm - 75mm |
| Trinocular Tube Focusable? | No |
| Head Rotation | 360 Degrees |
| Zoom Control Type | Detent Click-Stops |
| Zoom Indicator Graduations | Yes |
| Parfocal | Yes |
| Includes Eyepieces? | No |
| Includes Barlow? | No |
| Includes Eyecups? | No |
| Body Material | All-Metal |
| Head Ring Mount Diameter | 84 mm |
| Max Working Distance (standard) | 93mm |
| Reticles Available? | No |
